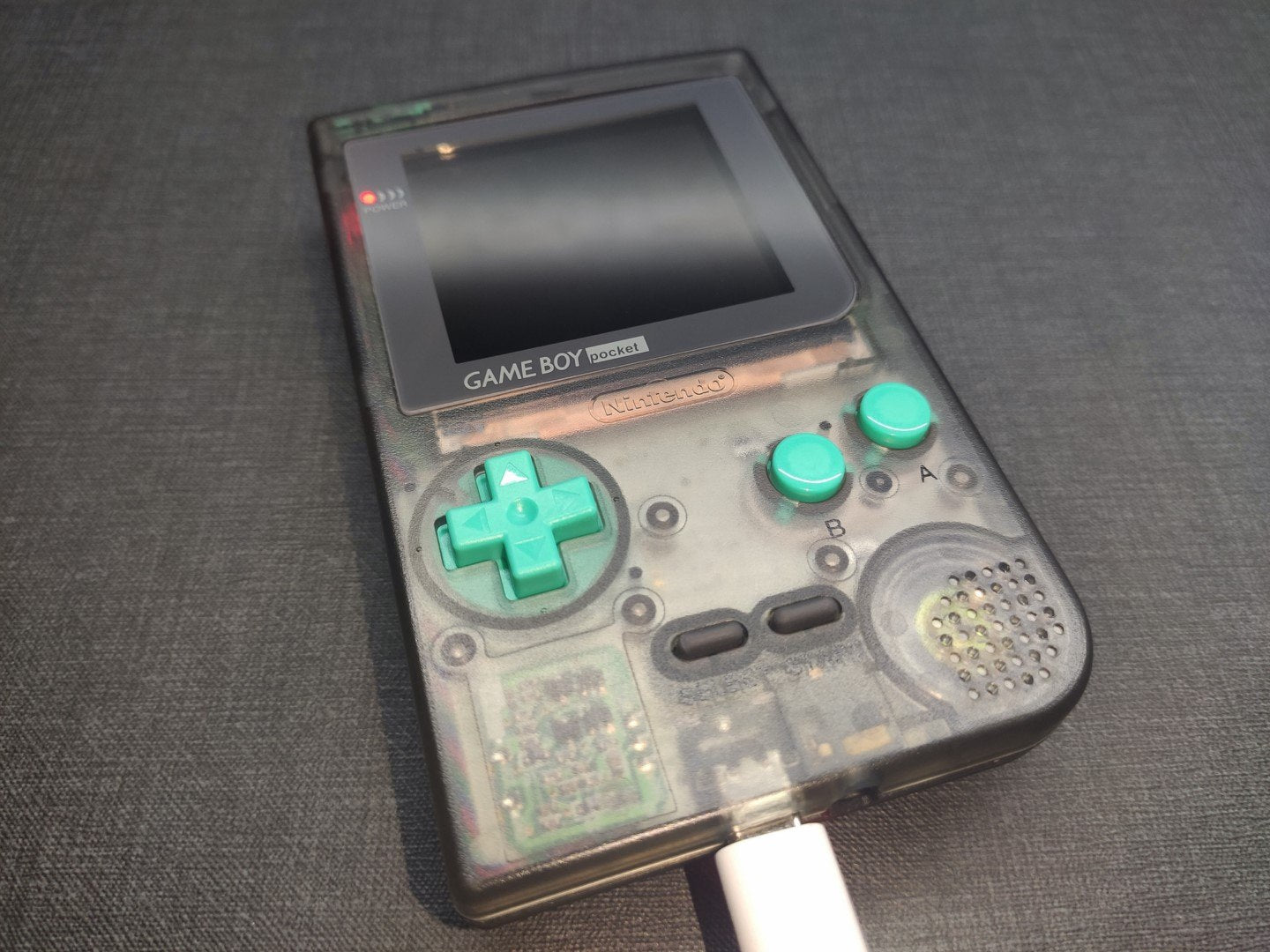

The Game Boy Pocket USB-C Charging Kit is a circuit that allows you to charge a Nintendo Game Boy Pocket via USB-C and use a Li-ion battery instead of AAA batteries.
FEATURES
- Exact shape for Game Boy Pocket.
- Li-Ion battery charger via USB-C with overvoltage and undervoltage protection.

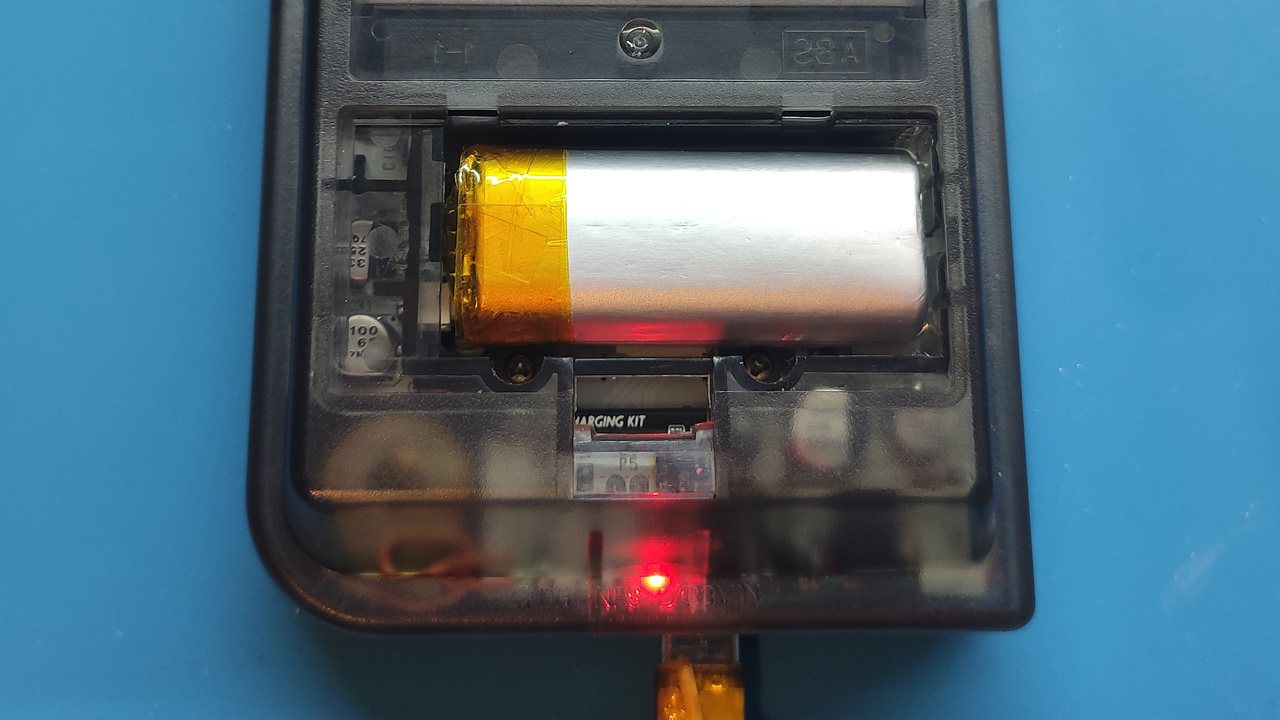

- Integrated LED indicators on the main board, next to the USB port, for charging (red) and full battery (green). These can be disabled via the SJ1 jumper.

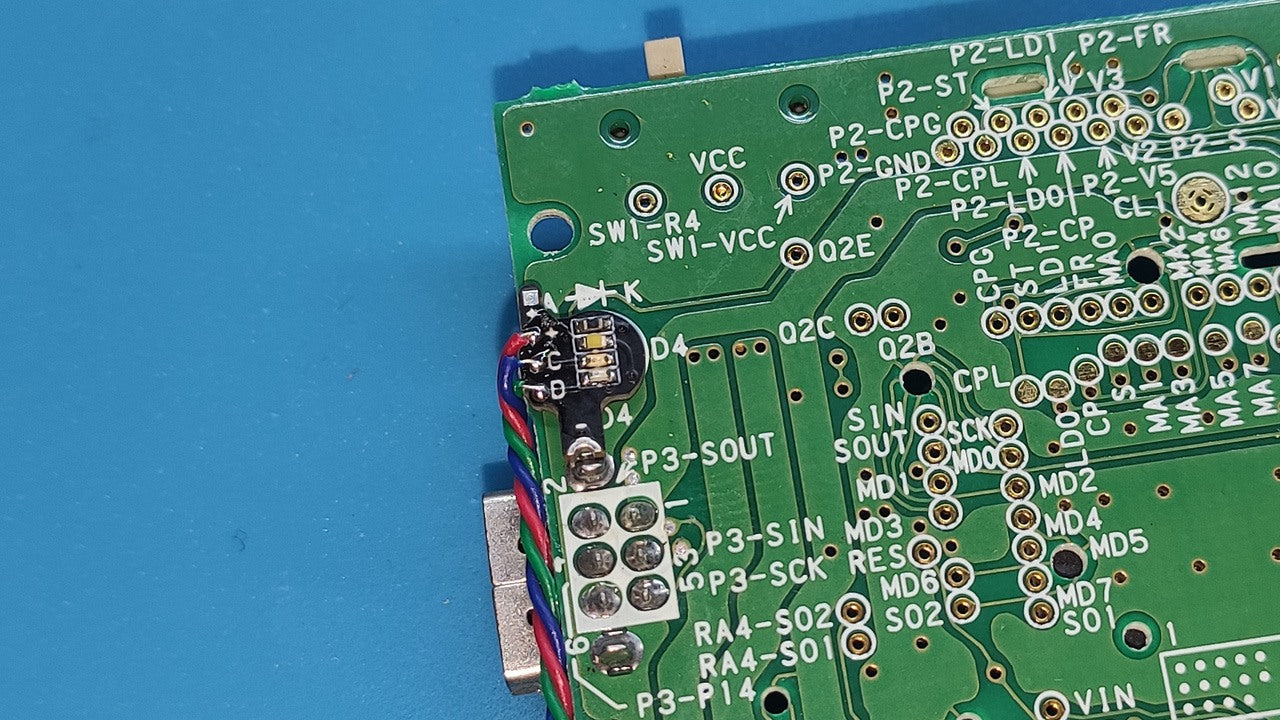

- External LED indicators board for playing (white), charging (red), and full battery (green). Optional installation.
INCLUDED

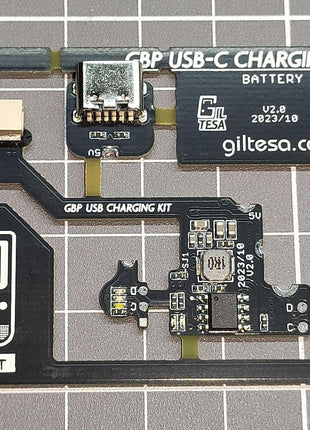

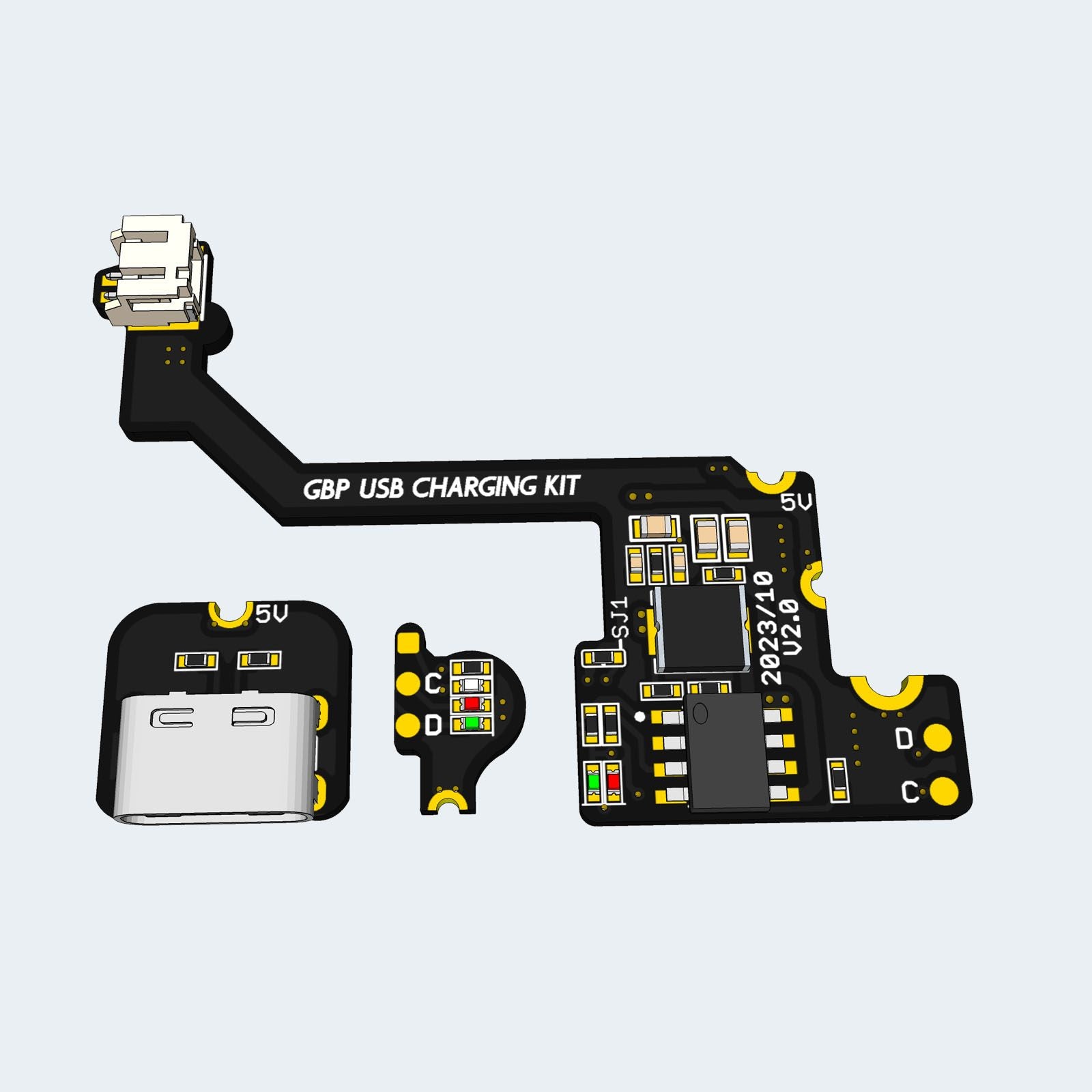

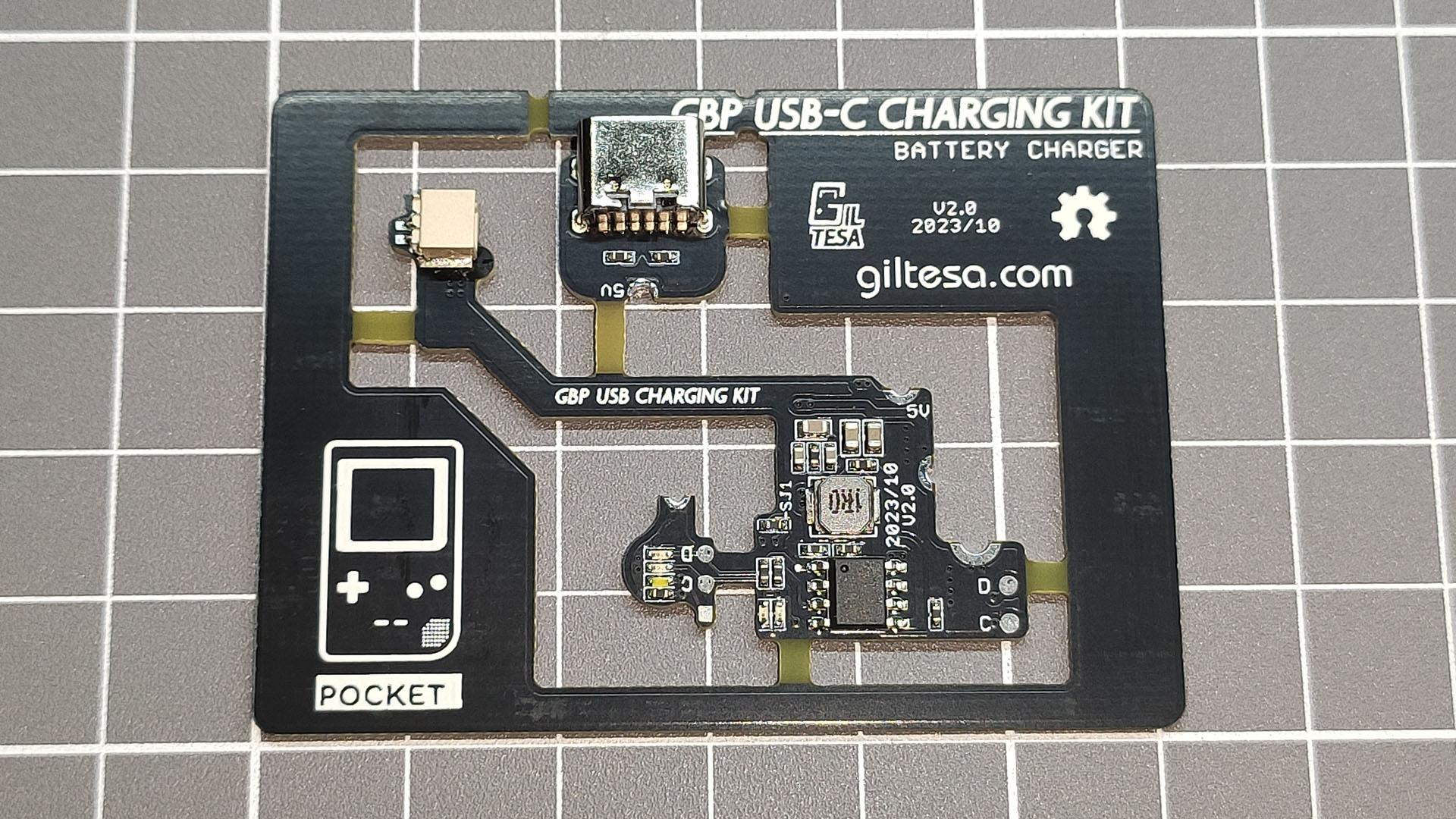

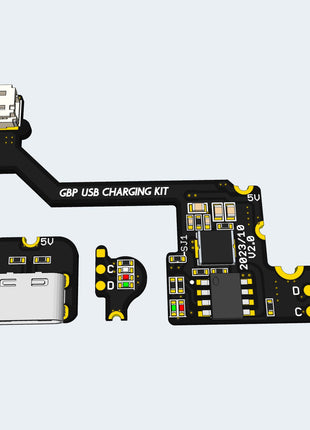

- 1 frame panel which includes the three boards:

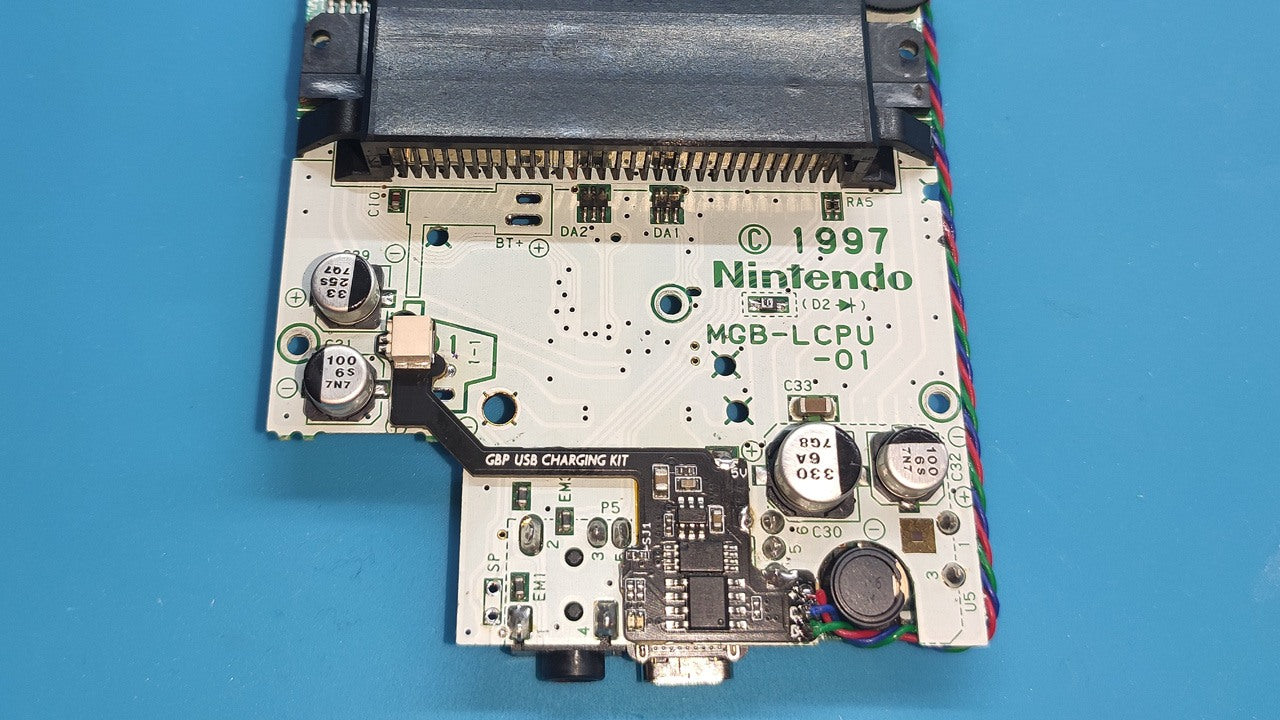

- Main board.

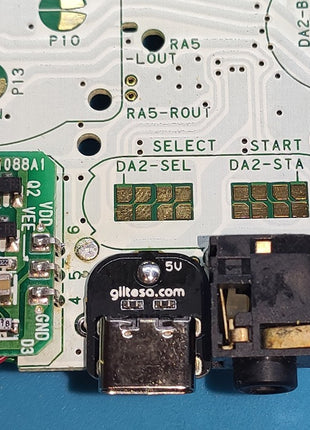

- USB-C board.
- Light board.
- 1 battery cable (with JST SH1.0 connector)
- 1 two-wire cable for connecting the light board.
- 1 light diffuser pipe.
REQUIRED (NOT INCLUDED)

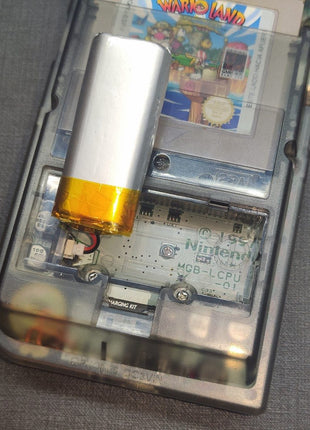

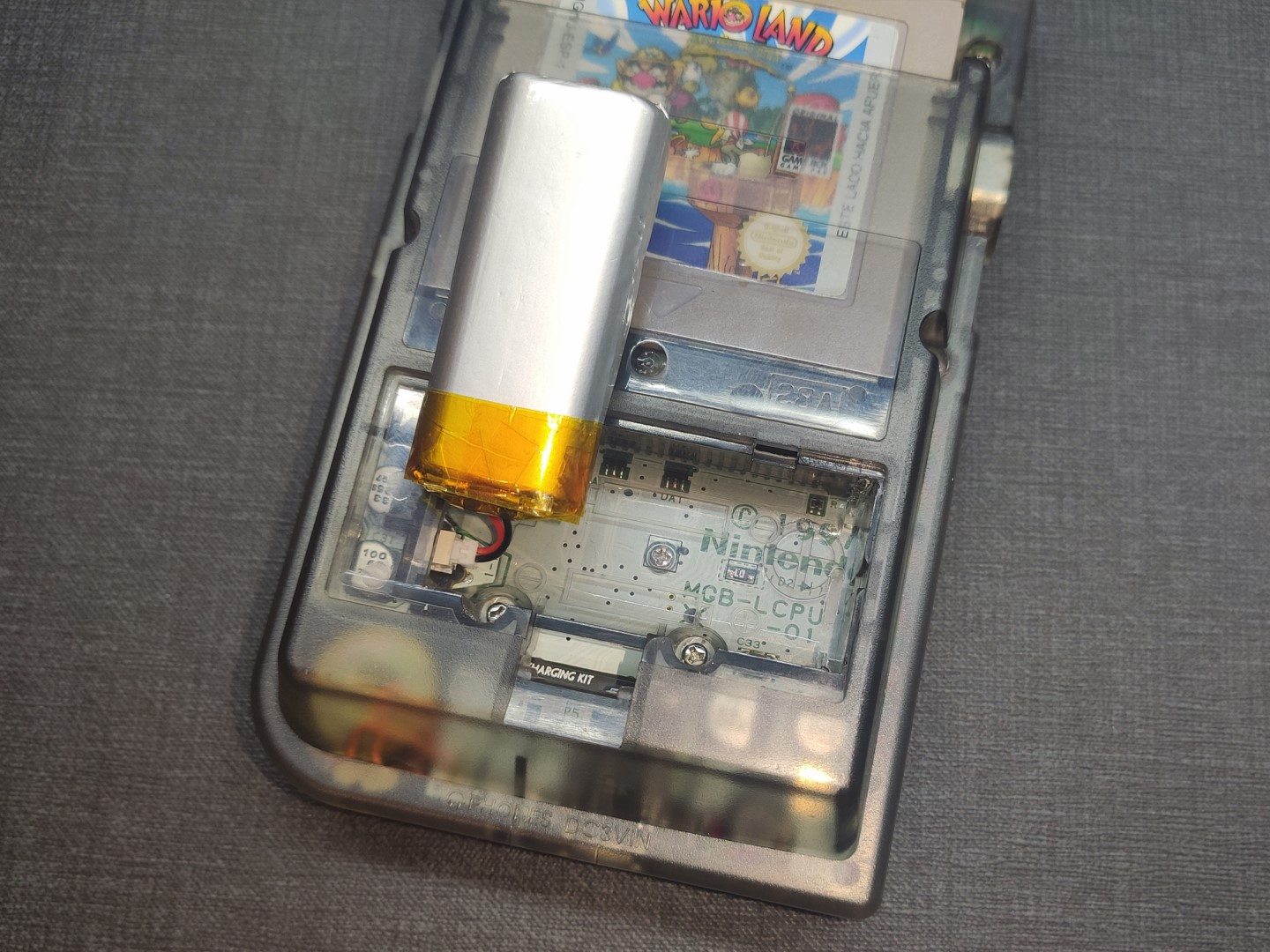

- Li-ion battery (for example, a 102045; maximum space available: 10(T)x20(W)x47(L)mm, cutting the shell)
- Phillips #00 and tri-wing security screwdrivers
- Tweezers
- Cutter
- Cutting pliers
- Soldering iron
- Tin
- Flux
- Desoldering pump
- Desoldering mesh
- Isopropyl alcohol
- Instant glue (Loctite, Super Glue)
NOTES
This module has been designed to be used with the console’s original voltage regulator, as it supports an input voltage range between 2 and 4.6V, while the battery kit provides a voltage between 2.75 and 4.2V. If you also want to change the original power supply, it’s important to ensure it is compatible with the voltage provided by the battery kit; otherwise, you may damage the components.
PRODUCT FEATURE OVERVIEW
|
|
Charger |
Power Conv. 5V |
Power Conv.-19V |
Audio Amp |
Light Board |
AAA/AA Batteries |
USB-C |
DC Jack |
|
This Product |
|
|
|
|
|
|
|
|
|
GB2 |
|
|
|
|
|
|
|
|
|
GBP Pro GBC Pro |
|
|
|
|
|
|
|
|
