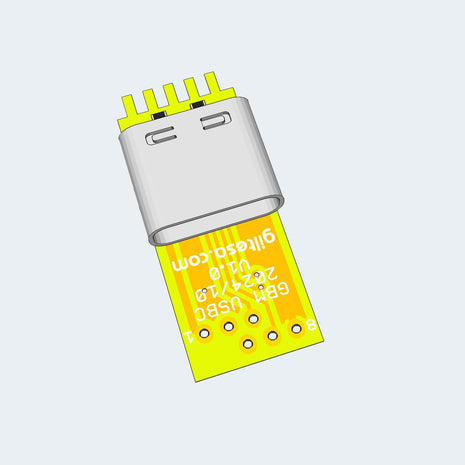

The Game Boy Micro USB-C Kit is a custom board that lets you upgrade your console by replacing the original charging port with a modern, universal USB-C connector. Replace your old or damaged charging port and upgrade to modern convenience. This USB-C mod kit lets you charge your console using any standard USB-C charger, including those for your Nintendo Switch, smartphone, or laptop. This board is compatible with the following models: Game Boy Micro FEATURES Exact shape for Game Boy Micro and easy to install. Charge your console using a wide range of modern USB power sources: USB power banks USB-A chargers USB-C chargers USB-C PD chargers (normal speed, not fast) USB-A to USB-C cables USB-C to USB-C cables Multiplayer connection support through an adapter INCLUDED 1 USB-C flexible board REQUIRED (NOT INCLUDED) Tri-wing screwdriver Phillips screwdriver Kapton tape (heat-resistant) Soldering iron Soldering tin (wire) Flux for electronics Desoldering pump Desoldering braid (mesh) Isopropyl alcohol (for cleaning) Instant adhesive (e.g., Loctite or Super Glue) DOCUMENTATION Installation Guide PDF GitHub repository

Read more less

This plastic tool made with a 3D printer will help you make a perfect hole in your Game Boy Color shell. It works as a template, helping you drill the hole precisely where it needs to be. By using a rotary tool, such as a Dremel, you can move the drill bits around the hole in the plastic tool, which will create the same hole on the shell. Watch this video to better understand how it works. FEATURES A plastic tool printed in PLA with a layer height of 0.2mm. It may be usable more than once if you use the appropriate drill bits. INCLUDED 1 x USB-C Cutting tool (Random color: Gray or Black) REQUIRED (NOT INCLUDED) Two screws like those included with the GBC shell, just for holding the cutting tool in place during the cutting process. A rotary tool like a Dremel with drill bits or diamond burs for cutting the hole. DOCUMENTATION Article on giltesa.com GitHub repository

Read more less

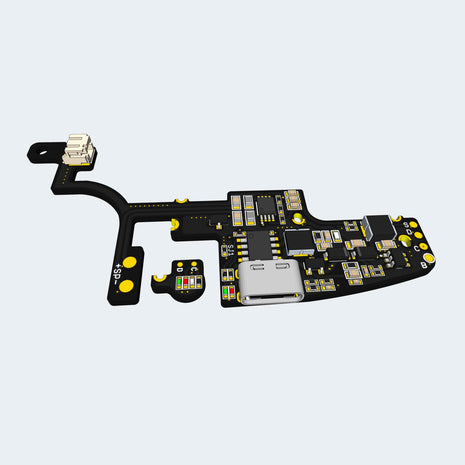

The Game Boy Color USB-C Charging Kit PRO is a new circuit designed specifically for the Nintendo Game Boy Color. This all-in-one circuit includes not only the charging controller but also a boost converter and audio amplifier. Modern IPS displays with backlighting require more power than the original display, and flash carts used to load numerous games can quickly drain the battery. To truly enjoy the games, it is recommended to use a rechargeable battery instead of AA batteries. However, simply using a rechargeable battery is not sufficient. The increased power consumption puts a strain on the original electronics, potentially causing noise in the speaker or headphones. The typical solution is to add a charging circuit for the battery and a power converter to replace the old, inefficient one included in the GBC. Some individuals also add an audio amplifier to enhance the sound quality of the speaker. All these modifications make the GBC function optimally. However, installing them requires numerous cables and may be challenging for individuals without sufficient knowledge. Typical installation of the 3 modules: Photo by Sascha This board adds all these features with a clean and straightforward installation: Board version 3.1 FEATURES Exact shape for Game Boy Color. Li-Ion battery charger via USB-C with overvoltage and undervoltage protection. DC to DC converter with 5V output. (The board doesn’t support the original screen, only IPS screens are supported) Safe charge and play (from v3.1). Audio amplifier for the speaker. Integrated LED indicators on the main board, next to the USB port, for charging the battery (red) and full battery (green). These can be disabled via the SJ1 jumper. External LED indicators board for playing (white), charging the battery (red), and full battery (green). Optional installation. INCLUDED 1 frame panel, which includes the two boards: Main board. Light board. 1 battery cable (with JST SH1.0 connector) 1 two-wire cable for connecting the light board. 1 single-wire cable for connecting the board to the sound pad. 1 light diffuser pipe. REQUIRED (NOT INCLUDED) Li-ion battery New 8Ω 1W speaker (optional but recommended to avoid noise) New capacitors (optional but recommended to avoid noise) Cutting tool (optional but recommended) Tri-wing and Philips screwdrivers Cutting pliers Cutter Tweezers Soldering iron Tin Flux Isopropyl alcohol NOTES The latest version is 3.3. This is a note for v2.3, which doesn’t properly support “Safe charge and play.” Please, DO NOT charge and play at the same time to avoid any problems. (Read more about it here) PRODUCT FEATURE OVERVIEW   Charger Power Conv. 5V Power Conv. -19V Audio Amp Light Board AAA/AA Batteries USB-C DC Jack GBP GBC GB2 This product DOCUMENTATION Installation guide PDF (Current version) Installation guide PDF (Only v2.3) Video installation (v2.2) Video installation by Makho GitHub repository

Read more less

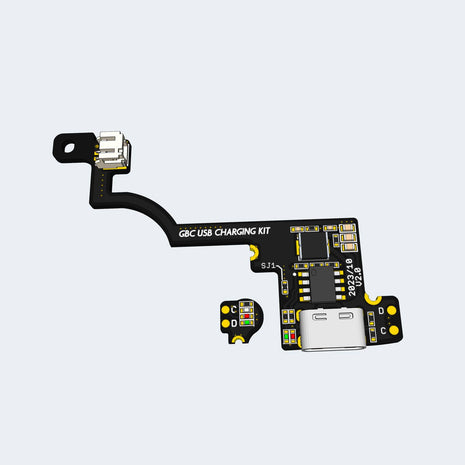

The Game Boy Color USB-C Charging Kit is a circuit that allows you to charge a Nintendo Game Boy Color via USB-C and use a Li-ion battery instead of AA batteries. This kit includes two boards. If you want an easy installation, the main board is sufficient and doesn’t require any additional cables to function. However, if you want to have the status LEDs in the same place as the original status LED, then you will need to solder the second board and connect both with 3 cables. You can choose the best option for you. FEATURES Exact shape for Game Boy Color. Li-Ion battery charger via USB-C with overvoltage and undervoltage protection. Integrated LED indicators on the main board, next to the USB port, for charging the battery (red) and full battery (green). These can be disabled via the SJ1 jumper. External LED indicators board for playing (white), charging the battery (red), and full battery (green). Optional installation. INCLUDED 1 frame board, which includes the two boards: charging and light. 1 battery cable (with JST SH1.0 connector) 1 two-wire cable for connecting the light board. 1 light diffuser pipe. REQUIRED (NOT INCLUDED) Li-ion battery Philips #00 and Tri-wing security screwdrivers Cutting pliers Cutter Tweezers Soldering iron Tin Flux Isopropyl alcohol Cutting tool (optional) NOTES This module has been designed to be used with the console’s original voltage regulator, as it supports an input voltage range between 2 and 4.6V, and the battery kit provides a voltage between 2.75 and 4.2V. If you also want to replace the original power supply, it’s important that it is compatible with the voltage provided by the battery kit; otherwise, you may damage the console. Since version 1.7, the shape has changed, but the features remain the same. The battery connector has been moved to a place where cutting the plastic shell is no longer necessary. PRODUCT FEATURE OVERVIEW   Charger Power Conv. 5V Power Conv. -19V Audio Amp Light Board AAA/AA Batteries USB-C DC Jack This Product GB2 GBP Pro GBC Pro DOCUMENTATION Installation guide PDF Video installation (old version) Article on giltesa.com (old version) GitHub repository

Read more less

This is a new light diffuser pipe made with a resin 3D printer for your Game Boy Pocket/Color USB-C Charging Kits. This product is already included with the kits. However, if you have a previous version or you lost it, you have the option to order it separately. FEATURES This light diffuser pipe is made to the exact size of the original shell hole. Its base is crescent-shaped; that side should be facing the IPS screen to avoid issues during installation. INCLUDED 3 light diffuser pipes (in clear white color since 2023-06) NOTES Due to differences between monitors, the picture may not accurately reflect the actual color of the light diffuser pipe. DOCUMENTATION GitHub repository

Read more less

This plastic tool, made with a 3D printer, will help you make a perfect hole in your Game Boy Pocket shell. It works as a template, ensuring that the hole is drilled in the exact place where it needs to be. FEATURES A plastic tool printed in PLA with a layer height of 0.2mm. It may be usable more than once when using the appropriate drill bits. INCLUDED 1 x USB-C Cutting Tool REQUIRED (NOT INCLUDED) Permanent marker Cutter Rotary tool like a Dremel with drill bits or diamond burs for cutting the hole. DOCUMENTATION Cutting Tool Guide GitHub repository

Read more less

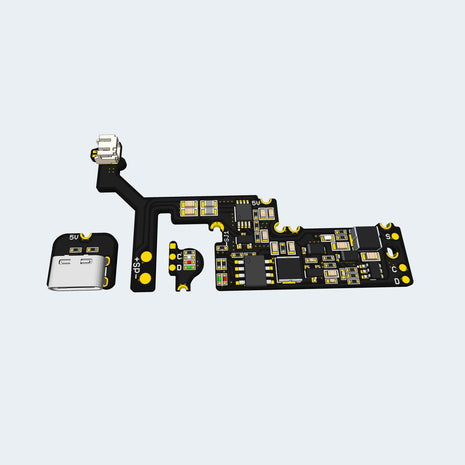

The Game Boy Pocket USB-C Charging Kit PRO is a new circuit designed specifically for the Nintendo Game Boy Pocket. This all-in-one circuit includes not only the charging controller but also a boost converter and an audio amplifier. Modern IPS displays with backlighting require more power than the original display, and flash carts used to load tons of games can quickly drain the battery. To truly enjoy the games, it is recommended to use a rechargeable battery instead of AAA batteries. However, simply using a rechargeable battery is not sufficient. The increased power consumption puts a strain on the original electronics, potentially causing noise in the speaker or headphones. The typical solution is to add a charging circuit for the battery and a power converter to replace the old, inefficient one included in the GBP. Some individuals also add an audio amplifier to enhance the sound quality of the speaker. All these modifications make the GBP function optimally. However, installing them requires numerous cables and may be challenging for individuals without sufficient knowledge. This board adds all these features with a clean and straightforward installation:   FEATURES Exact shape for Game Boy Pocket. External power through USB-C.(1) Compatibility with all types of USB cables or external batteries. Li-Ion battery charger with overvoltage and undervoltage protection.(1) Power DC converter with a 5V output.(2) Safe charge and play. Audio amplifier for the speaker. Integrated LED indicators on the main board, next to the USB port, for charging (red) and full battery (green). These can be disabled via the SJ1 jumper. External LED indicators board for playing (white), charging (red), and full battery (green). Optional installation. (1) The USB-C port and Li-ion battery require trimming of the shell. (2) Provides stable power to your Game Boy, IPS screen, and flash cart. However, it doesn’t supply the -19V rail, which means the stock screen or the GBP IPS screen that adjusts brightness through the contrast wheel will not be able to change the brightness level and will remain at its maximum level. INCLUDED 1 frame panel which includes the three boards: Main board. USB-C board. Light board. 1 battery cable (with JST SH1.0 connector) 1 two-wire cable for connecting the light board. 1 single-wire cable for connecting the board to the sound pad. 1 light diffuser pipe. REQUIRED (NOT INCLUDED) Li-ion battery New 8Ω 1W speaker (optional but highly recommended to avoid noise, for example, this one) New capacitors (optional but recommended to avoid noise) Tri-wing and Phillips screwdrivers Cutting pliers Cutter Tweezers Soldering iron Tin Flux Isopropyl alcohol NOTES The stock screen is not compatible with this module; only IPS screens will work with it. The contrast wheel doesn’t function because the -19V rail is not provided by this kit. This means that the GBP Retro Pixel IPS screen is unable to adjust its brightness. This board is recommended for IPS screens with a touch sensor designed for brightness control. PRODUCT FEATURE OVERVIEW   Charger Power Conv. 5V Power Conv. -19V Audio Amp Light Board AAA/AA Batteries USB-C DC Jack GBP GBC GB2 This Product DOCUMENTATION Installation guide PDF GitHub repository

Read more less

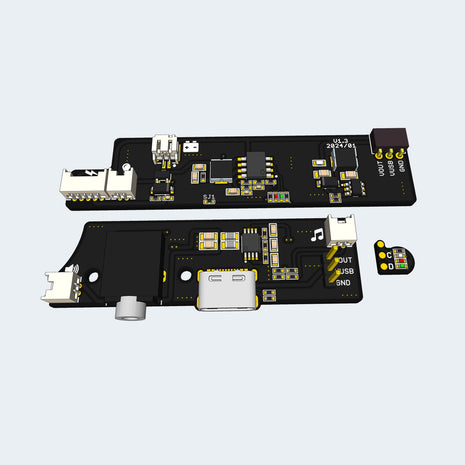

The Game Boy DMG USB-C Charging Kit PRO is a new circuit designed specifically for the Nintendo Game Boy. This all-in-one circuit includes not only the charging controller but also a boost converter and an audio amplifier. Modern IPS displays with backlighting require more power than the original display, and flash carts used to load numerous games can quickly drain the battery. To truly enjoy the games, it is recommended to use a rechargeable battery instead of AA batteries. However, simply using a rechargeable battery is not sufficient. The increased power consumption puts a strain on the original electronics, potentially causing noise in the speaker or headphones. The typical solution is to add a charging circuit for the battery and a power converter to replace the old, inefficient one included in the Game Boy. Some individuals also add an audio amplifier to enhance the sound quality of the speaker. All these modifications make the Game Boy function optimally. However, installing them requires numerous cables and may be challenging for individuals without sufficient knowledge. This board adds all these features with a clean and straightforward installation: FEATURES Exact shape for Game Boy DMG. External power through USB-C.(1) Compatibility with all types of USB cables or external batteries. Li-Ion battery charger with overvoltage and undervoltage protection.(1) Power DC converter with a 5V output.(2) Safe charge and play. Audio amplifier for the speaker, amplifying both channels. Integrated LED indicators on the main board for charging (red) and full battery (green). These can be disabled via the SJ1 jumper. External LED indicators board for playing (white), charging (red), and full battery (green). Optional installation. (1) The USB-C port and li-ion battery require trimming of the shell. (2) Provides stable power to your Game Boy, IPS screen, and flash cart. However, it doesn’t supply the -19V rail, which means the original screen cannot be used. INCLUDED 1 frame panel which includes the three boards: Main board USB-C board Light board 1 Battery cable 10cm (with JST SH1.0 2p connector) 1 Audio cable 15cm (with JST 1.25 2p connector) 1 Speaker cable 10cm (with JST 1.25 2p connector) 1 Light board cable 10cm (with JST 1.25 2p connector) 1 Power cable 15cm (with JST 1.25 5p connector) 1 Header with 3 pins 1 Plastic holder for the USB-C board 1 Light diffuser pipe REQUIRED (NOT INCLUDED) Li-ion battery New 8Ω 1W speaker (optional but highly recommended to avoid noise, for example, this one) Tri-wing and Philips Screwdrivers Cutting Pliers Cutter Tweezers Soldering iron Tin Flux Isopropyl alcohol NOTES The kit is for IPS screens that only require the 5V rail. The original screen or other screens that require the -19V rail will not work. DOCUMENTATION Installation Guide PDF GitHub repository
